Mach3 will run on any Windows OS from Windows 2000 through Windows 8. The parallel port driver included with Mach3 will only work with 32-bit DESKTOP computers with versions of Windows 2000 through Windows 7, but will not work with any 64-bit version of Windows or with Windows 8.
WizardsWizards are “mini-programs” that extend the capabilities of Mach3. Wizards can be written by anyone and are designed to allow users to quickly perform routine or convenient operations without the need to have a pre-written G-Code file.Included with Mach3 are some free Wizards that were contributed by users.
These short-cuts should not be confused with the Add-on’s for Mill or the new Mill Wizard software, which are more advanced wizard packages with integrated operations. Some typical wizard operations:. Gear cutting.
Digitizing. Holes. Slots and keyways.
Text engraving. Many standard shapes. Surfacing. MANY MORE. Non-commercial users (aka hobbyists) are permitted to use one Mach license for as many machines as they require.
For commercial users (anybody who uses the software to generate profit), we require a separate license purchase for each machine. Mach1, Mach2, and Mach3 may all be used on one computer, but only one version of each will co-exist on a single computer.A license is only required on the computer actually running a machine. If a computer not connected to a machine is used to test code, please use Mach3 in Simulation mode – it will remove the 500 line limit. Simulation mode can be accessed by uninstalling (or not installing) the Parallel Port Driver.
The Add-ons for Mill will only work with a licensed copy of Mach3 as this software is an Add-on, and not a stand-alone product.(a disk) of the downloadable content are available directly from a 3rd party.

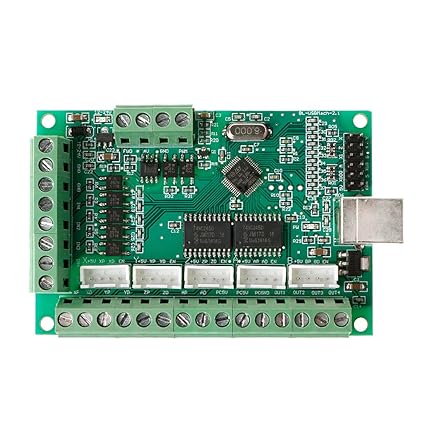

Question #:13625Question:Will the Mach 3 USB breakout board work with a Windows 7 64 bit system? Current SolutionI don't see why Mach3 under windows 64-bit wouldn't work with an interface that uses USB as it's primary communication method. I am a bit vague on this, so I will do more research on it.
We recommend Mach3 run under Windows 32-bit when using the parallel interface as this is a legacy function. Additional Information: Additional Information: mach 3 usb board setup Additional Information: I am running Mach3 under Windows 7 Pro 64bit without any problems. Additional Information: Additional Information: Respond:Other Possible Solutions to this Question. Sure, the USB interface has a place for 4 axes of limit switches.
Each axis can have two limit switches: one for the (positive) end and one for the - (negative) end. The positive end would be the limit switch at the end of the machine that, say the machine has a 4'x8' area, reaches a bit after the 8 foot mark. The negative end would be the limit switch behind the 0 foot location behind the origin. If the origin is in the middle, the negative would be at a little more than the -4 foot end and the positive would be at a bit more than the +4 foot end. Note that you can have more than one switch on each pin where the NC is connected in serial fashion and the NO is connected in parallel fashion (this can be seen on the diagram in the multiple limits switch section). The software configurations for the limits switches are under File - Settings - Limit. A typical limit switch has three connections on it.
These connections consist of COM (common), NC (normally closed) and NO (normally open). The COM would generally go to GND and the NC or the NO would go to the pin. If the NC is used, then the the switch is constantly connected until the switch is pushed (engaged) then the connection from the pin to gnd is broken (open).
Use the settings in software to set whether in NC or NO configuration. Let me know if this information was helpful (or not) by adding information to this question. User response: Thank you very much for this helpful information. I'm still a little fuzzy on how the 6 limit switches physically connect to each other and to the USB breakout board. You've stated one switch (home) goes to positive and another switch (limit) goes to negative. Are all the GND prongs from all 6 switches connected to each other and going to GND on the breakout board, or no? And the NC prongs, how exactly are they connected to each other?
And to the board? There has to be a diagram somewhere shows this visually, no? I don't know how to wire the switches in series or in parallel. I have already physically installed all the switches on the machine and ran the wires to where the board is. Now I just need to know where to plug these wires into the board. Also, taking into consideration that I'm using the Planet CNC software, the only settings I have pertaining to limit switches is 'Enable/Disable' for each axis, and the actual limit for each axis. Nothing about NC or NO.
Is that only in Mach3? Buildyourcnc response: On the USB interface, the COM on the switch connects to GND and the NC or NO connects to the input pin (i.e. X, y-, etc.) Limit switch configuration is rather difficult to understand, especially with series and parallel. You can think of series as a single wire going from GND to the axis letter input terminal (i.e.
If the wire is broken, then the circuit is open (or the switch is engaged in a normally closed scenario). Normally closed is like an actual wire, and when engaged, the switch 'opens' (breaks the wire). This is why we recommend in some systems that you can put many switches in series on a single pin. When one of the switches is engaged (breaking the connection) then the entire circuit of switches is broken and the machine stops.
In a parallel scenario, the state of the circuit is always broken until the one of the switches is engaged and the circuit is then closed or connected. The topology looks like a ladder. All the switches connect to both sides of the ladder and the switches are like the runs of the ladder (the horizontal bars that the feet are placed while climbing). Imagine all of the switches broken in this scenario (normally open). It would be like the ladder could be split in two, but if one of the ladder runs (switches) is closed by engaging it, then that run would connect both sides of the ladder and the two sides of the ladder would have a connection.
64-bit Java
There is a diagram on the USB page of the various limit switch configurations. If you need more information (visual and/or otherwise), please let us know and we will immediately add that information to benefit everyone.Click the link to respond:. The Mach3 USB board will fit in the redLeaf, but you may need to modify the Plexiglas top for proper mounting. However, the redLeaf has the proper parallel GPIO on the motherboard for use with the Parallel breakout board. If you have a laser on the machine you are using, then I would urge you to maintain the parallel breakout board as the Mach3 USB board will not work correctly using the Z-direction pin and you will need to determine how to use the output pins onthe USB board to ensure proper laser functionality.Click the link to respond:. You will need a USB cable to connect the computer and the Mach3 USB.
The 64-bit operating system must be Windows and you will need the Mach3 CNC control software installed on the operating system. You will need to install the USB driver called RNRMotion.dll. You can find the driver here: Move the file to your Mach3 Plugins folder Example: 'C:/Users/ProgramFiles/Mach3/Plugins' Mach3 will prompt you to select a driver and this is where you can select the 'RnRMotionController' and check 'Don't ask me again'. This will allow your board to communicate with Mach3. You will also need the xml file found on this page: On that page, you will need to download the XML Mach3 Config File by right clicking on the link and selecting 'save as'. Save the Mach3Mill.xml file in your Mach3 root folder.
Winrar 64-bit Download
That file is the main configuration file for the Mach3 board. It has all of the typical settings that the Mach3 board needs.Click the link to respond:. What part of your breakout board is not working? Are you having trouble getting a signal from the computer out of the breakout board to the drivers? The breakout board uses the USB as the 5v power source. Additional Information: Wiring the limit switches Additional Information: I am using my breakout board as port 2 from my ess smooth stepper only for limits so it's powered via 12v, now I want to use pin 17 to trigger my plasma will I still need to supply 5v power to is a well? As I'm not using the usb it's connected to smooth stepper via 25pin ribbinClick the link to respond:.
